Inspection

SMT Inspection

With the technology upgradation in SMT manufacturing assembly lines, miniaturization of electronic components, and the growing demand for higher production rates, comes the demand for advanced SMT Inspection equipment. These Inspection systems help accurately identify the defects in PCB Assembly lines. Test & Research India Pvt. Ltd. offers high-end Inspection equipment from world-class manufacturers such as:

  • Automatic Optical Inspection (AOI)
  • Automated X-Ray Inspection (AXI)
  • Solder Paste Inspection (SPI)
  • In-Circuit Test (ICT)

TRI Innovation, Taiwan

TRI Innovations provides state-of-the-art testing and inspection equipment for the PCB Assembly lines.

  • Optical Inspection
  • Electrical Inspection
  • Automated X-ray Inspection
TR7700Q-3D-AOI

TR7700Q - 3D AOI

The TR7700Q 3D AOI combines the latest of 2D and 3D technologies based on digital quad fringe pattern projection to revolutionize PCB assembly inspection.

View
TR7710-2D-AOI

TR7710 -2D AOI

The economical customizable TR7710 combines a precise high resolution camera system and TRI&'s exclusive multi-phase lighting to capture detailed PCB panel images.

View
TR7710-DT-Desktop-AOI

TR7710 DT - Desktop AOI

The TR7710 DT is an economical, flexible stop-and-go desktop AOI solution that combines a precise high resolution camera system and TRI's exclusive

View
TR7700-SIII-3D

TR7700 SIII 3D

TRI's ground breaking 3D AOI solution delivers the fastest hybrid PCB inspection combining optical and blue-laser-based true 3D profile measurement

View
TR7500-SIII-3D

TR7500 SIII 3D

TRI's optimum 3D AOI solution delivers the fastest multi-angle PCB inspection coupled with blue-laser-based true 3D profile measurement for the

View
TR7007-SII-Plus

TR7007 SII Plus

With industry leading speeds of up to 200 cm2/sec, the TR7007 SII Plus is the perfect SPI solution for any production line. This highly accurate inline

View
TR7007-SII-Ultra

TR7007 SII Ultra

The TR7007 SII Ultra performs at an industry-leading speed of up to 180 cm2/sec. The TR7007 SII Ultra is built on an enhanced mechanical platform

View
TR7007-D-Plus

TR7007 D Plus

The TR7007D/DI Plus 3D SPI platform is equipped with an improved motion controller (EtherCAT) and an enhanced 2D lighting module.

View
TR7007-D

TR7007 D

Built upon latest 3D projection technology, the TR7007Q SPI offers industry leading inspection accuracy for the most demanding applications.

View
TR518-SII

TR518 SII

Built around the successful and reliable TR518 series platform, the TR518 SII MDA now provides its excellent performance combined with friendly

View
TR5001

TR5001

Designed as an expandable platform for testing PCBAs, the TR5001 provides an economical, customizable solution that can fully meet testing

View
TR5001-SII

TR5001 SII

Next generation ICT+FCT solution offers breakthrough performance Multi-Core Parallel testing with up to 4 independent cores for high-throughput testing.

View
TR8100-LV

TR8100 LV

Designed for testing large and complex PCBAs, the TR8100LV is TRI's top-of-the-line board test system targeting the low-voltage testing market.

View
TR-5001-Inline

TR 5001 Inline

Optimized for inline integration, this SMEMA-compatible ICT is designed as an expandable platform for testing PCBAs. The TR5001 IN LINE provides

View

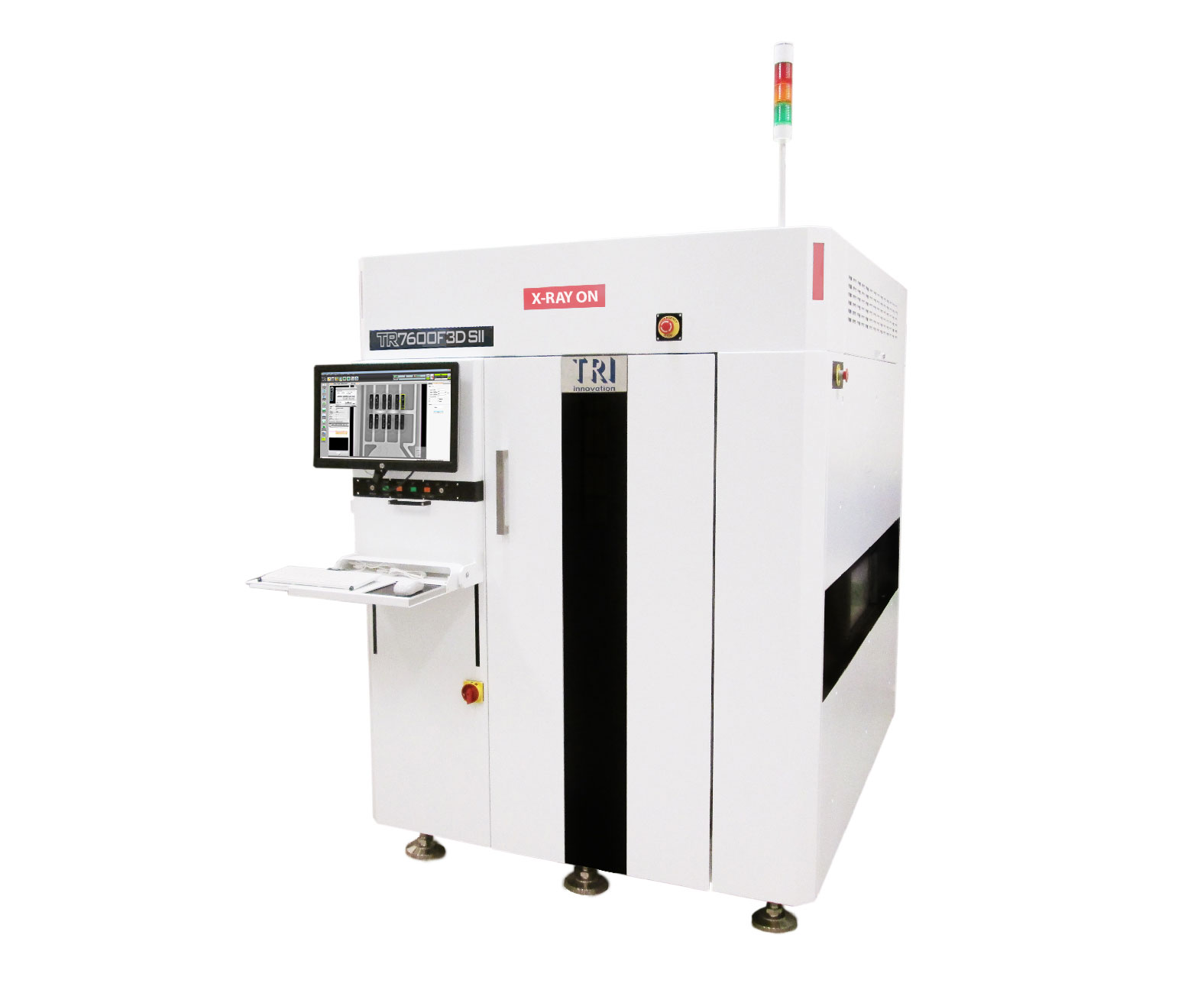

TR7600-F3D-SII

TR7600 F3D SII

The TR7600F3D SII is the Next-generation High-Speed In-line Automated X-Ray Inspection Solution, soaring speeds as to twice to three times

View
TR7600-SII

TR7600 SII

The TR7600 SIII series CT AXI is a new generation of TRI's hallmark inline PCBA inspection solutions. Designed for 100% inspection coverage

View
